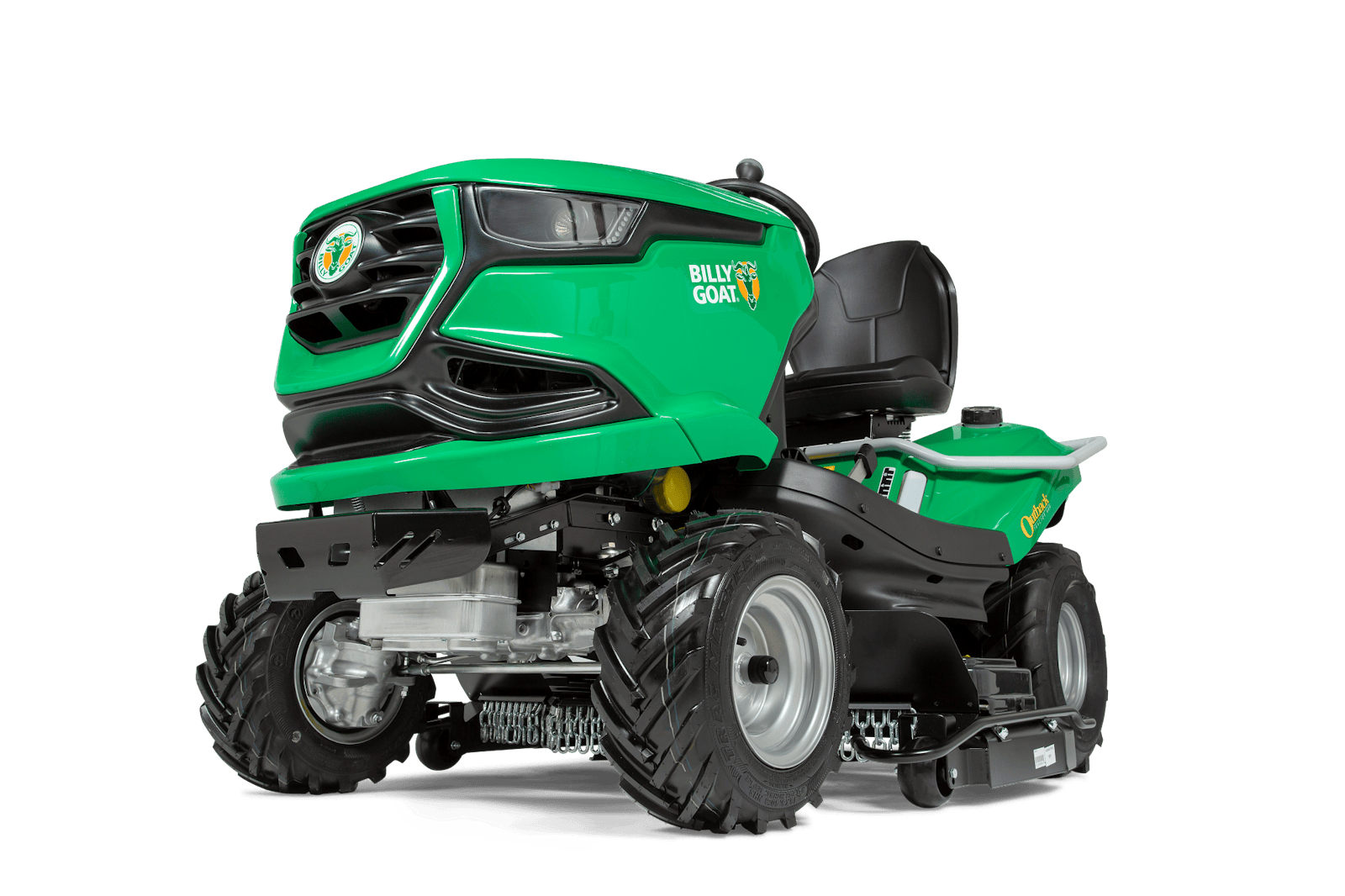

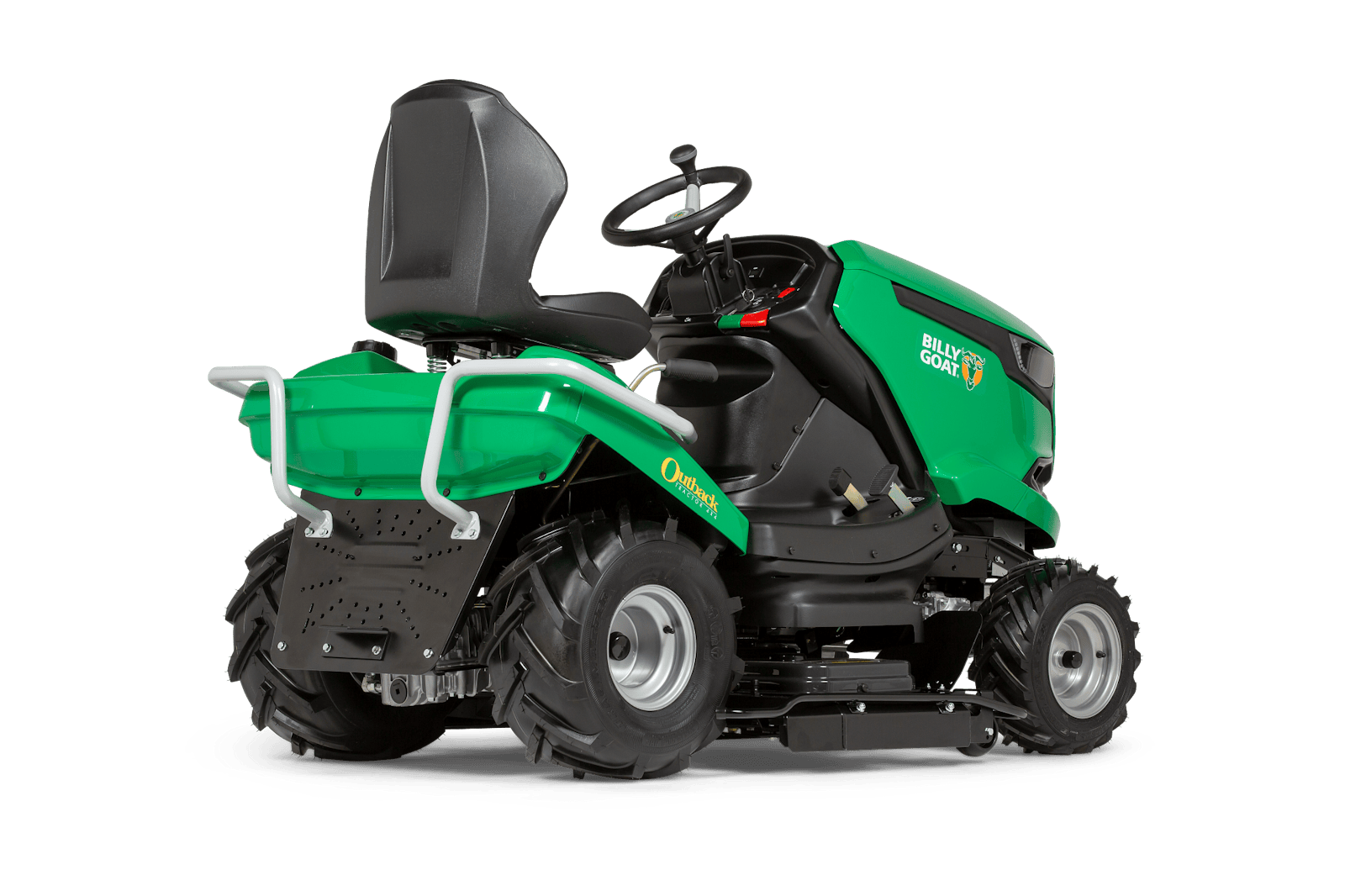

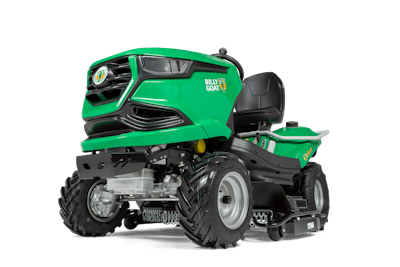

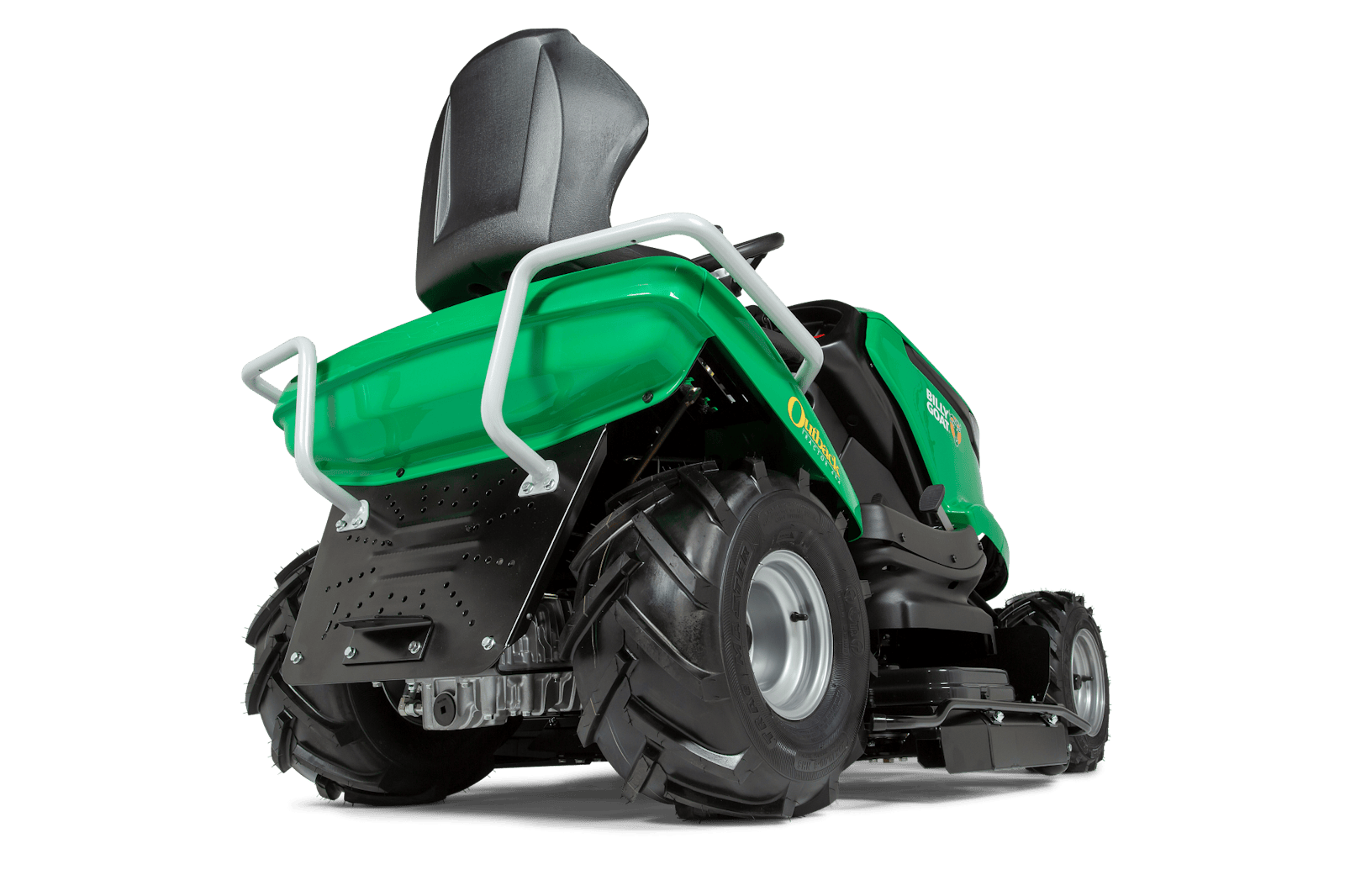

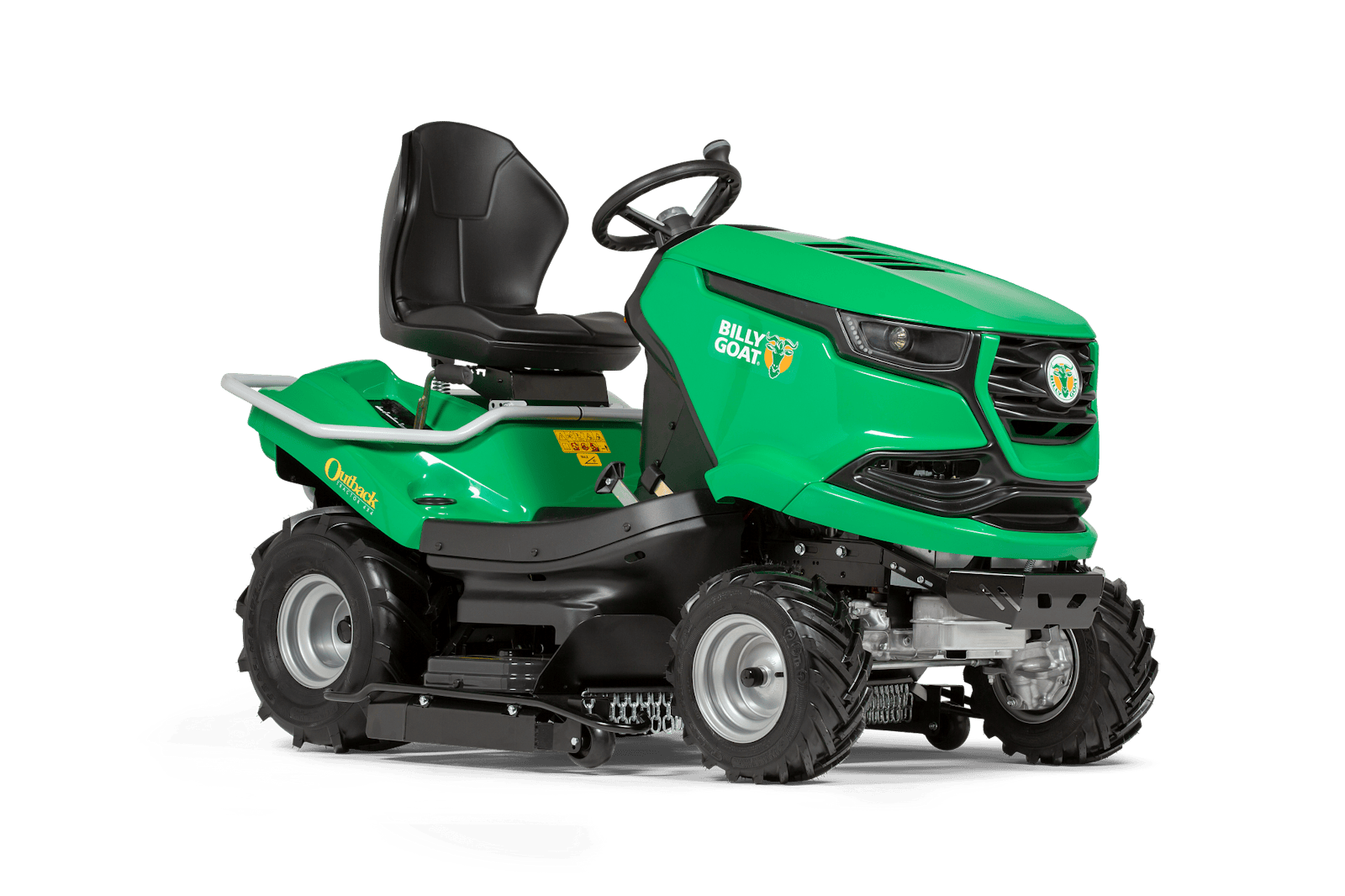

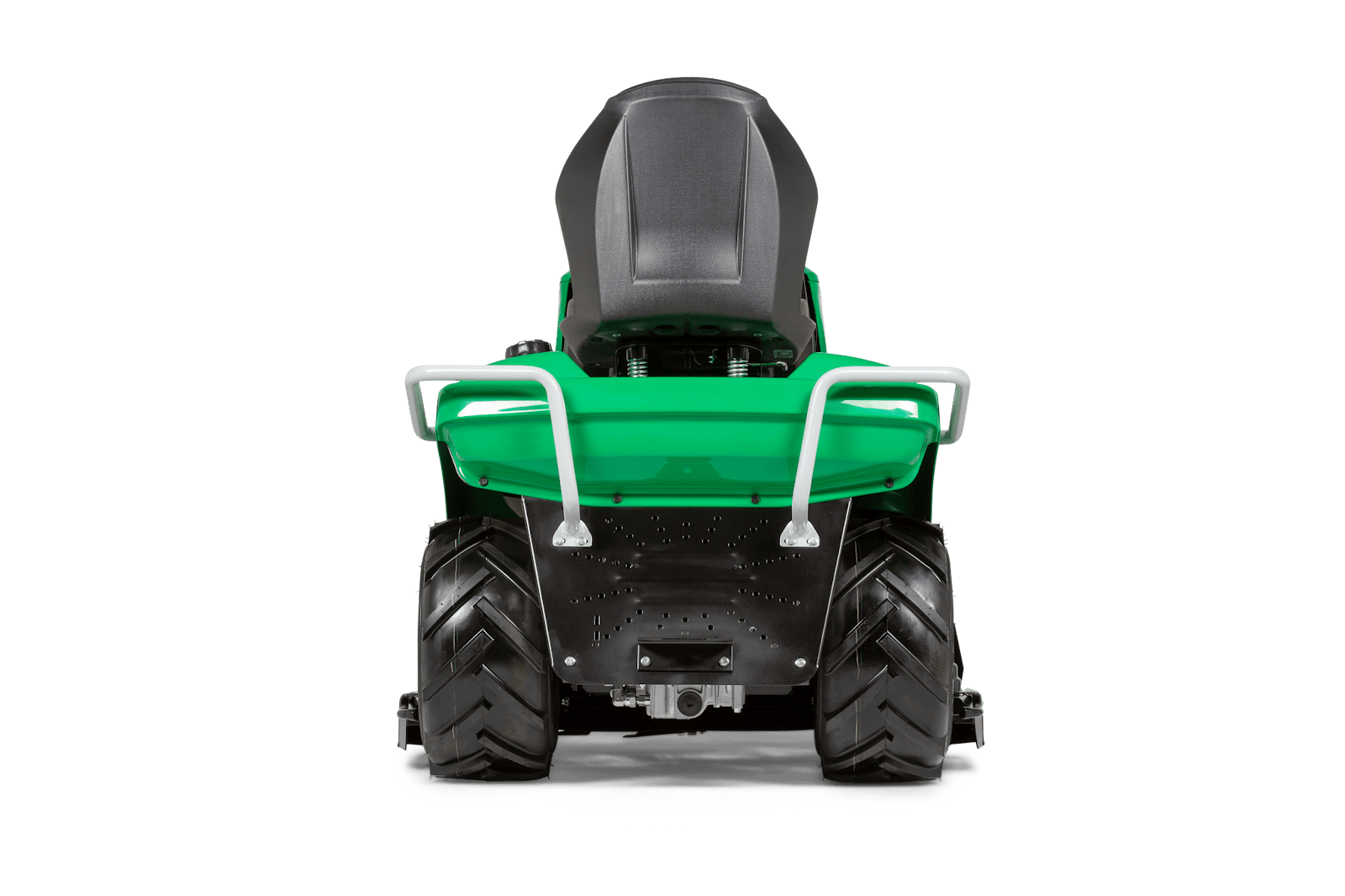

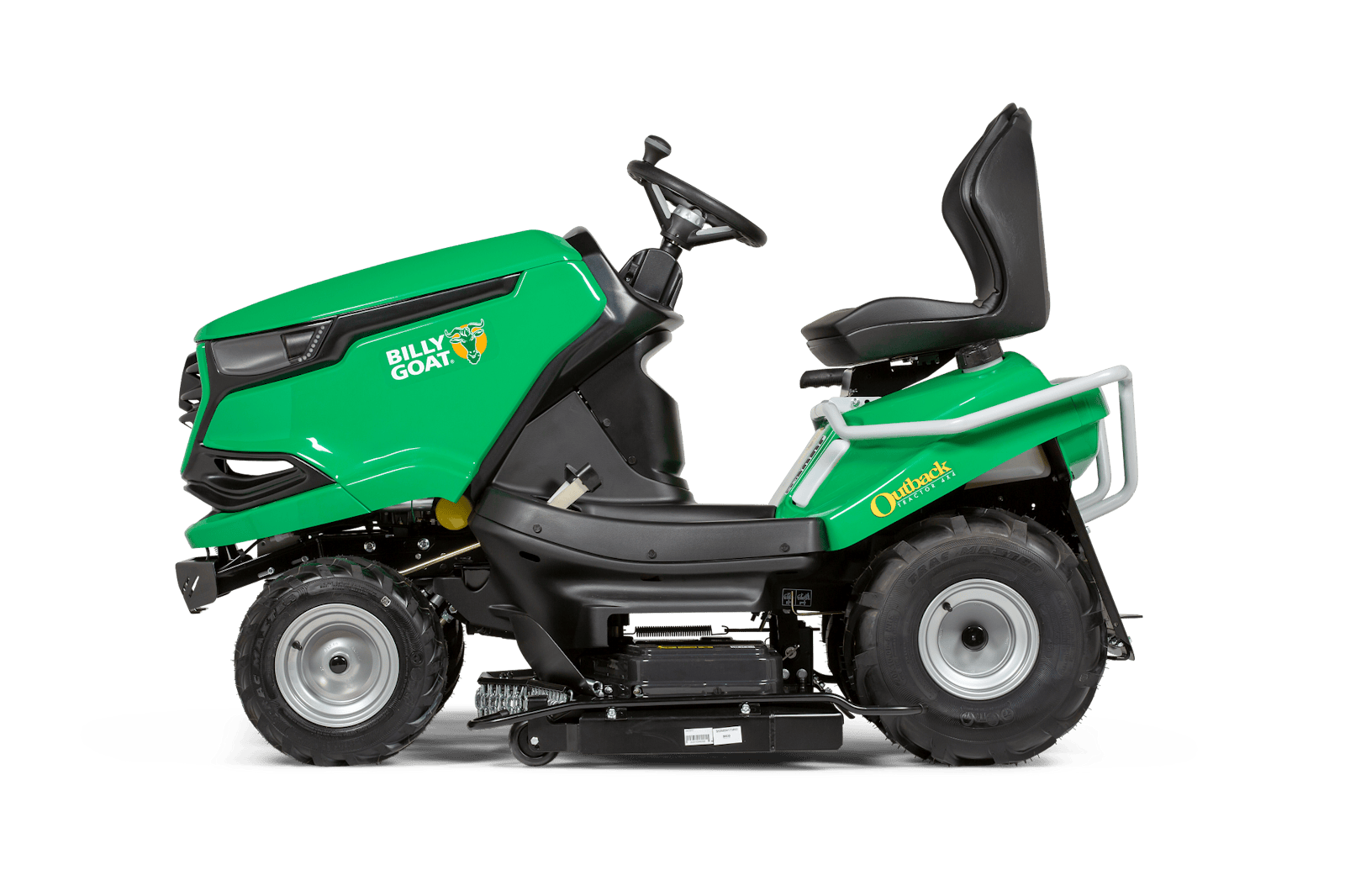

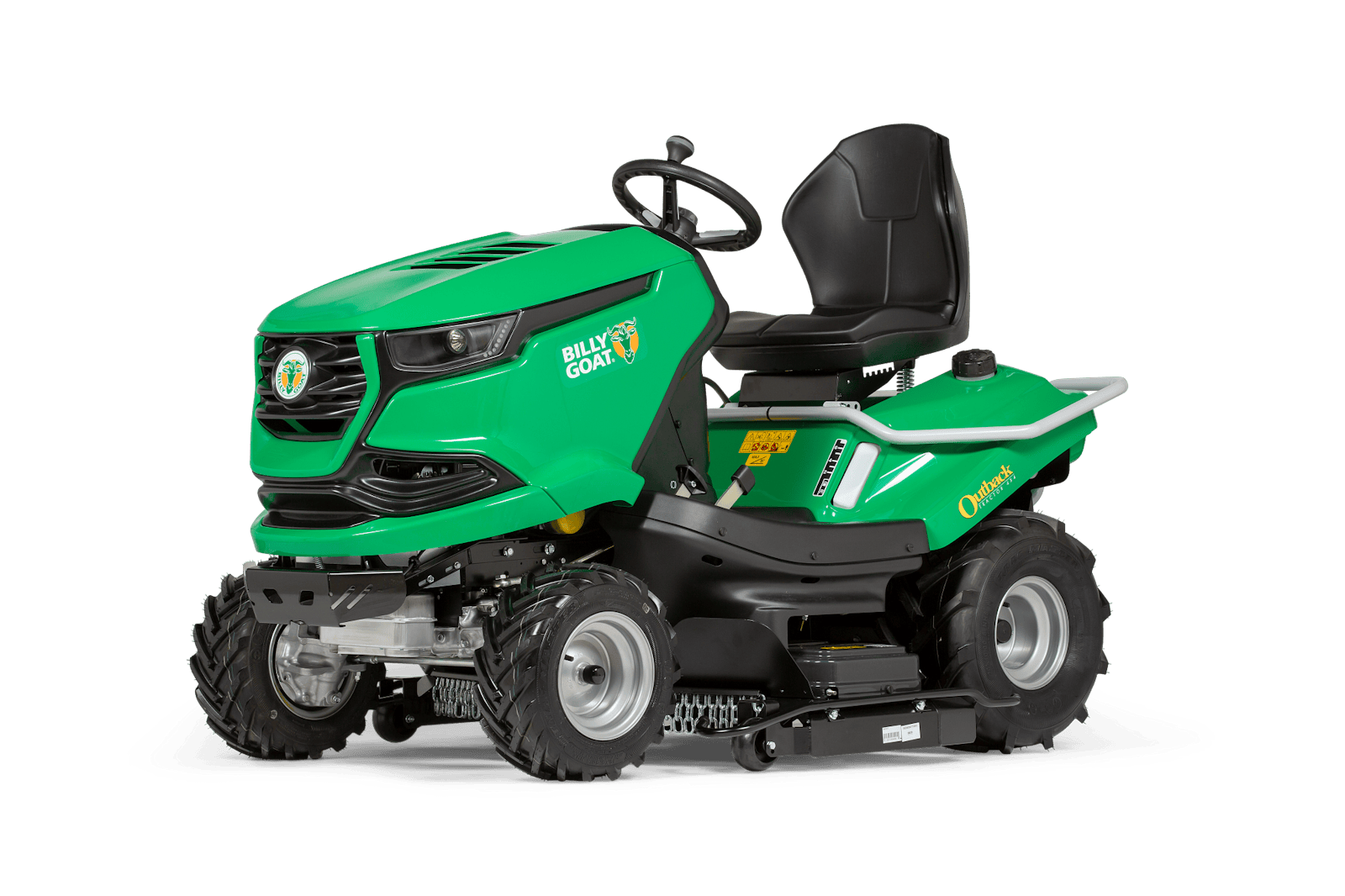

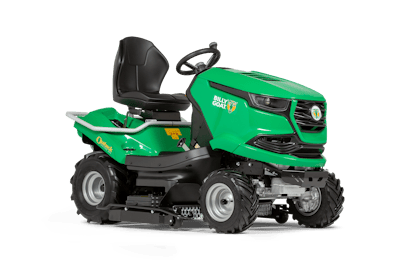

Outback® Tractor 4WD
The Billy Goat Outback® Tractor 4WD delivers superior traction, excellent stability and superb cutting strength for operators working on steep, uneven or challenging ground. Its 23 HP Briggs & Stratton® 8260 CXi V-Twin engine with a cyclonic air filter powers a 110 cm fabricated mower deck with three offset blades for clean, consistent results in tall grass, dense vegetation and brush. Seven cutting heights (3–8.5 cm) allow you to adapt easily to site conditions, while the Tuff Torq® 4WD system provides confident control on slopes. The differential lock and agricultural-tread tyres maximise grip, and operator comfort is assured with a contoured adjustable seat, smooth hydrostatic drive and simple mechanical deck lift. All this makes the 4WD ideal for orchards, vineyards, meadows, campsites and large private estates.
Get in touch with your local dealer
Let us contact you for more information, availability and pricing.
Features
- 23 HP Briggs & Stratton® 8260 CXi V-Twin engine
- Cyclonic air cleaner for maximum protection in dusty environments
- Tuff Torq® 4WD system with K664E & KXH 10N hydrostatic transaxles
- Fabricated 110 cm high-grass mower deck with three offset cross blades
- Seven cutting heights (3–8.5 cm), mechanical deck lift
- Agricultural-tread tyres for enhanced traction on slopes
- Manual differential lock for additional grip
- Adjustable contoured seat (6 positions)
- Rigid protection rail around operator platform
- User-friendly dashboard with PTO switch, throttle, RMO and warning lights
- Frame-mounted heavy-duty front bumper with integrated tie-down points
- Cruise control for long sessions
Features
Powerful engines
The 23 HP Briggs & Stratton® 8260 CXi V-Twin engine features a cyclonic air filter for maximum protection in dusty, high-grass environments.

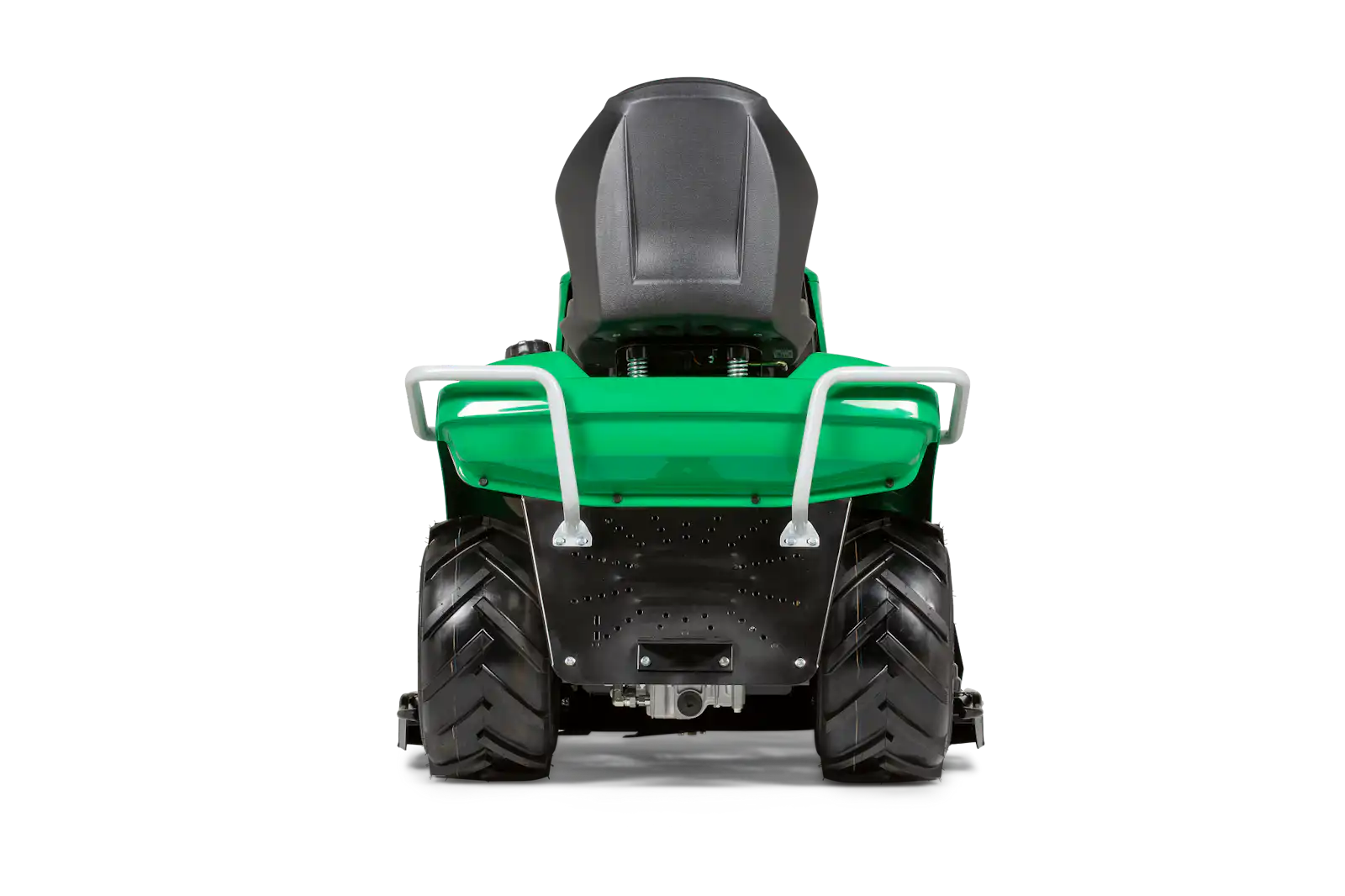

Protection rail
The rigid protection rail wraps around the seat deck protecting both the machine and the operator. It also serves as a secure grip on the machine, i.e. if you need to lean outwards while mowing edges.
User friendly dashboard
The operator's compartment features a dashboard with control and warning lights, throttle lever, electric PTO engagement switch, reverse mowing option switch, steering wheel (with tilt-function and spinner knob on the 4WD model), cruise control switch and a parking-brake lever.
Heavy duty front bumper
The heavy duty front bumper is frame mounted and protects the tractor against accidental impacts and incorporates tie-down points for securing the machine during transportation.
Drive System
The heavy duty Tuff Torq® 4WD system automatically controls the output to all four drive wheels.
Combined with the locking differential, this 4WD system provides all the traction you need operating in the most challenging environments.
Durable high grass mower deck
The strong fabricated mower deck with open front design discharges grass clippings rearwards. The three mower spindles host cross blades that are positioned at an offset cutting height. This
enhances its performance in high grass conditions with excellent particle reduction, and also performs well at nicely manicured lawns.
Comfortable seat
The Outback tractor features a comfortable, ergonomic Cobo seat that ensures proper seating even when riding on rough terrain. The seat is adjustable in 6 positions.
Differential lock
Both Outback tractors feature a manual differential lock that locks the rear wheels together. This enables you to keep driving even if one of the rear wheels would slip.
Drive wheels
Large drive wheels with agricultural tread ensure sufficient grip for the 4WD model even on steeper slopes. The 2WD model features turf-friendly tyres that are suitable for well-manicured lawns.
Cruise control
When mowing larger areas it is nice to be able to set the speed so you can place your right foot in a more comfortable position.
Specifications and Compare
| Model |   Outback® Tractor 2WD |  Outback® Tractor 4WDSelected |
|---|---|---|
| Learn more | ||
Power | Power | |
| Engine brand | Briggs & Stratton | Briggs & Stratton |
| Engine model | 8240 PXi 724cc V-Twin | 8260 CXi 724cc V-Twin |
| Starting system | Electric start | Electric start |
| Fuel capacity | 12 l | 12 l |
| Performance HP* | 22 | 23 |
| Air filtration | Dual element air cleaner | Cyclonic air cleaner |
| Fuel | Petrol (up to 10% ethanol) | Petrol (up to 10% ethanol) |
Drive system | Drive system | |
| Drive system | Tuff Torq | Tuff Torq |
| Forward speed | 0 - 9,5 km/h | 0 - 9,5 km/h |
| Reverse speed | 0 – 4,5 km/h | 0 – 4,5 km/h |
| Axle | Tuff Torq K62M hydrostatic transaxle | Tuff Torq 4WD system with K664E and KXH 10N hydrostatic transaxle |
| Parking brake | Internal transaxle | Internal transaxle |
| PTO clutch | Warner electro magnetic clutch | Warner electro magnetic clutch |
| Differential lock | Yes | Yes |
Features | Features | |
| Cutting width | 110 cm | 110 cm |
| Height of cut | 3 - 8,5 cm | 3 - 8,5 cm |
| Height of cut adjustment | Adjustable in 7 positions | Adjustable in 7 positions |
| Mower deck | Fabricated | Fabricated |
| Mower deck lift | Mechanical | Mechanical |
| Blades | 3 | 3 |
| Seat | Adjustable contoured seat | Adjustable contoured seat |
| Maximum inclination | 12 | 15 |
| Model series | Tractor | Tractor |
Dimensions | Dimensions | |
| Weight | 279 kg | 338 kg |
| Length | 191 cm | 191 cm |
| Width | 115 cm | 115 cm |
| Height | 129 cm | 129 cm |
| Front wheel | 16 x 6,50 - 8 inch, turf tread | 16 x 6.50-8 inch, agricultural tread |
| Rear wheel | 20 x 10,00 - 8 inch, turf tread | 20 x 10.00-8 inch, agricultural tread |
| Deck width | 110 cm | 110 cm |
* All power levels are provided by the engine manufacturer
